Acoustic Guitar Part 2

Neck, heel, bindings, fingerboard bridge and frets are added

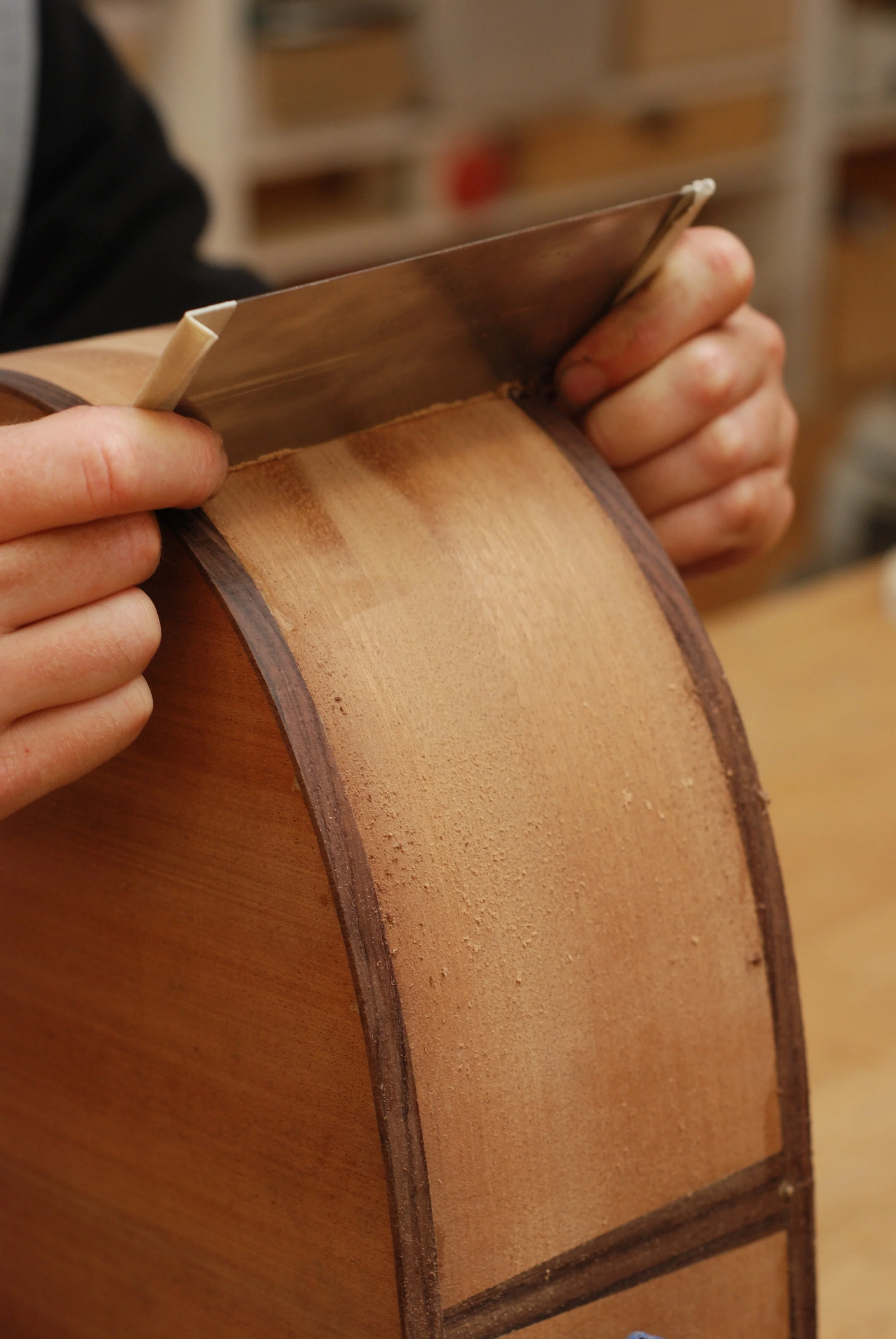

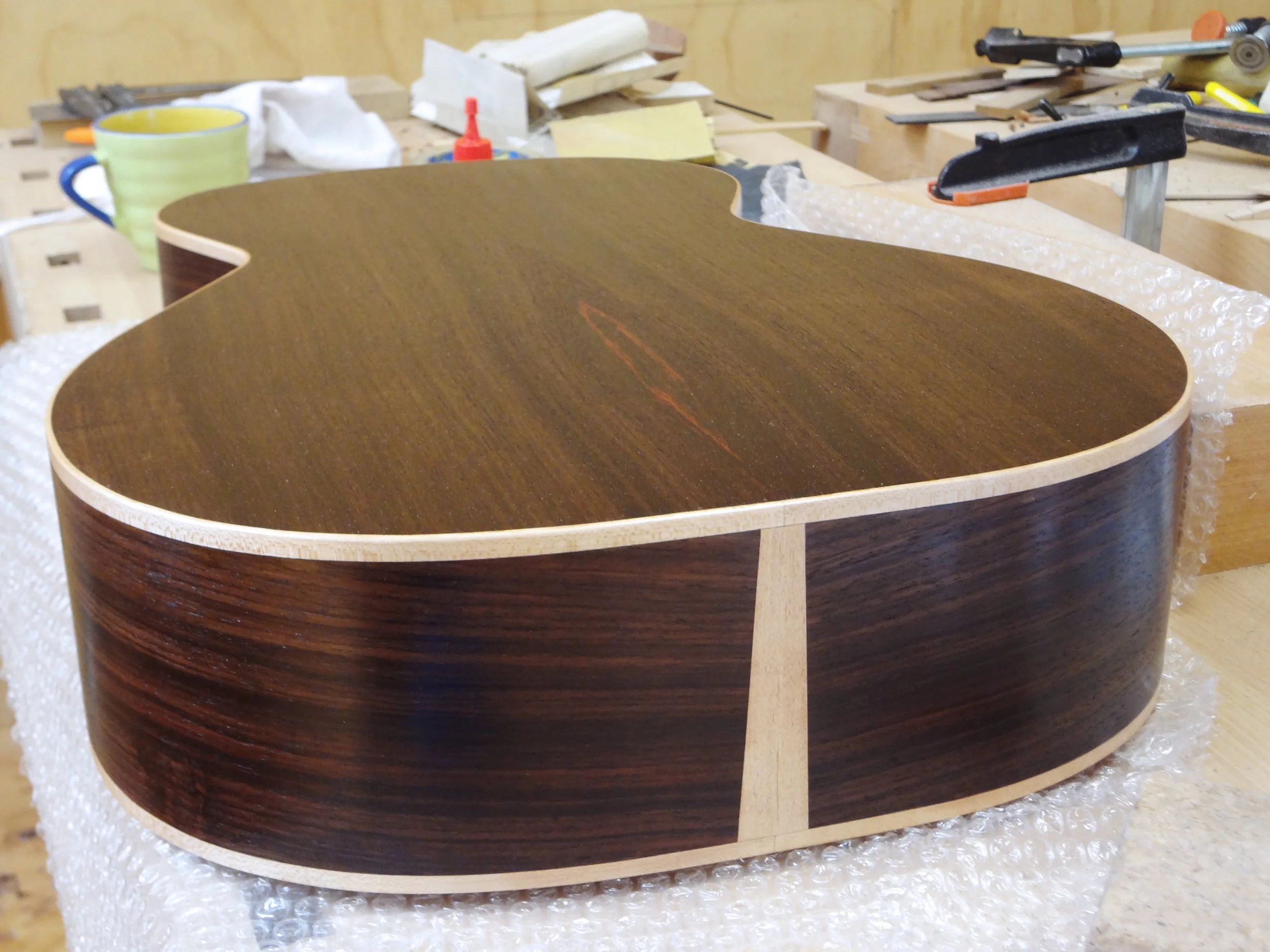

Where the sides meet at the tail of the guitar, it is customary to cut a recess and glue in a wedge-shaped piece of wood to match the intended bindings. The wedge tapers from 10 mm to 20 mm, with the wide end at the soundboard. The guitar can be held upright in a foam-padded vice and a small steel ruler can be stuck to the end of the guitar to serve as a guide for a marking knife or a razor saw to cut and chisel this wedge-shaped piece out of the tail to a depth of about 1 mm. Take care to avoid cutting too deeply into the end of the soundboard or the back. The wedge is dry-fitted to ensure a tight join and then glued in with a weight placed on top. The wedge can be made over-length as it is trimmed back later when binding ledges are cut. We next cut a ledge all the way around the back and the soundboard side of the guitar to enable gluing on a hardwood binding. This helps seal the end-grain of the soundboard and back and is also aesthetically pleasing. The binding wood is chosen to create a pleasing contrast with the back and side wood e.g. dark rosewood against a mahogany body or light maple against a rosewood body. Each piece of binding covers quarter of the guitar’s outline, so that they meet on the centreline at the heel and the tailblock. A small router or laminate trimmer is used to rout the ledge 7 mm deep and 2 mm wide, using a custommade guide. This allows you to control the depth and width of the ledge. It has a long guide that bears against the side of the guitar so that the ledge is routed vertically, rather than following the contours of the top or back. Because this small router’s guide bears on the side of the guitar, the guitar sides must be scraped/sanded all the way around. This also removes all glue blobs, hollows and bumps that will affect how it runs. Decorative strips called purflings can also be inlaid inside the bindings. Something as simple as a strip of black/ white between the soundboard and the binding can really make the top stand out. Obviously, if these are used, the router has to be adjusted for the greater ledge width.

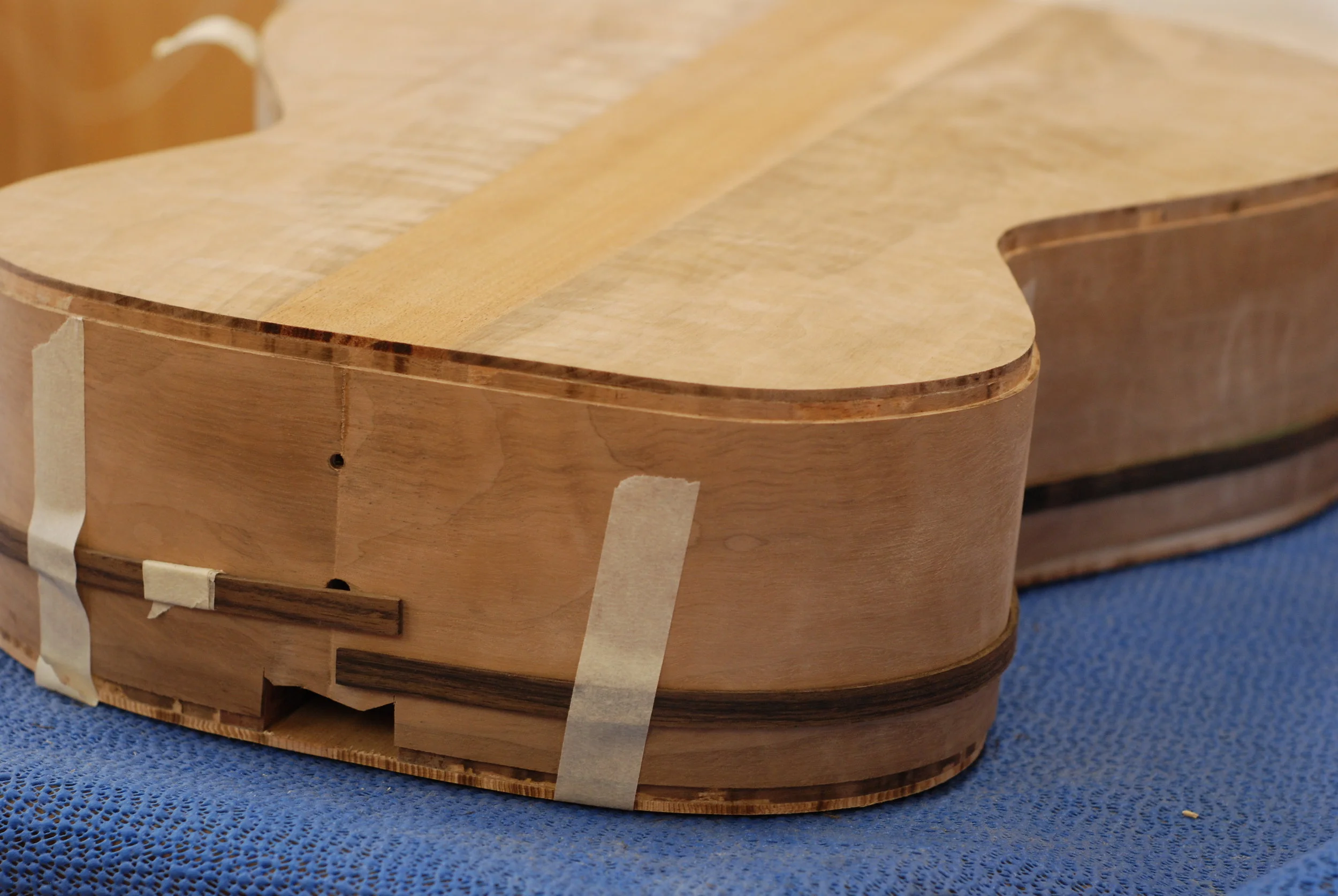

Bindings/purflings are made slightly taller than the ledge at 8 mm by 2 mm, and slightly overlength for each half of the side, and bent on the hot iron. A baseboard of thick MDF is made to the outline of the guitar and screws driven into the edge every 30 mm or so. Foam or bubble wrap is used under the perimeter of the guitar to avoid crushing the dome of the top or back when tension is pulled onto the string that holds the binding on. Dry-fit one section of binding on the soundboard side while using cardboard to protect the unbound side of the guitar from dents due to the string. Mark the centreline of the guitar on the binding at each end then remove the binding from the guitar and trim it to length. Apply glue to the binding ledge and glue on the binding, using the wraps of string, starting from the centre of the tailblock, working your way up the guitar. Once the glue is dry, remove the string and dry-fit the binding for the other side. Trim to butt up against the other binding, then glue on. Repeat for the back bindings. Use a cabinet scraper/sandpaper to clean up glue squeeze-out and to scrape the binding height down to the guitar body. The bindings will also need scraping around the sides to tidy up the join with the body. Take care not to remove too much thickness in the bindings when doing this. Finish-sand the body with 180/320/400 grit abrasive paper.


A neck blank is prepared from quartersawn stable timber to 30 mm thick, 820 mm long and 60 mm wide. From one end, remove 200 mm. This will be cut into shorter lengths and stacked up to build up thickness to make the heel. Thickness the remaining blank down to 25 mm. The head of the guitar tilts back from the neck at an angle of approximately 10 degrees. This change in angle occurs just behind the nut and is accomplished by making a scarf joint. Square a line around the neck blank 75 mm from the head end. Using a bevel gauge set to 10 degrees, mark a line which will indicate the angle for cutting. Cut using a handsaw, bandsaw or a jig on a table saw. You will now have a short and a long piece of wood with a long taper at one end. Flip the shorter piece over, and place it on top of the longer one so that the angle runs as one surface. It will be rough-sawn and needs planing smooth. Ensure that only the minimum of material is removed and that the planed surface remains square to the sides of the neck. When the wood is smooth, the pieces are aligned so that the planed surface of the head piece contacts the underside of the longer piece. Slide the head piece along until the combined thickness of the head/neck tapered pieces is 14 mm and mark across the join with a pencil. Glue together. There will be a large amount of excess thickness at the top end of the head piece. This can be removed by plane until the head is a constant thickness of 14 mm.

Truss rod

A slot is now routed along the length of the centreline of the neck on the fingerboard side. This is because the neck is reinforced internally with a metal rod called a truss rod. This has a threaded end which can be tightened to induce a curve in the neck to counteract the pull of the strings. In an acoustic guitar, truss rods are often placed so that they can be adjusted via the soundhole with an Allen key. The rod is glued into a slot that is routed into the neck and after the fingerboard is glued on is invisible. Truss rod dimensions can vary so measure width and depth that the slot will need to be before routing on a router table. The aim is for a snug fit of the rod into the neck so that it sits just below the surface of the wood. The length of the slot is routed so that the adjuster on the truss rod will sit 5 mm approx above the large cross-strut at the top of the soundboard. Square a line across the neck where the change of angle for the head occurs and square this around the neck. This line is where the back of the nut will sit. The head is too narrow so the scarf join needs reinforcing on the sides. Glue a 10 mm wide strip of wood to either side of the head, and when dry plane down to match the already planed surface. A 2 mm head veneer is glued on to the head surface to strengthen the scarf join and also to proved support for the back of the nut. Use numerous clamps and a thick clamping caul to ensure it is glued on flat. Ensure that the nut end of the veneer extends 2-3 mm beyond the pencil line that was squared around the neck to define the back of the nut. This is because the nut sits flat on the neck. The change of angle for the head occurs immediately behind it. Therefore where the nut sits against the head veneer, the veneer has to be trimmed so that the edge is square to the neck both vertically and across the neck. This is best accomplished with a shoulder plane. This edge now becomes a reference point for marking out the rest of the neck. Measure and mark out 5 mm from this edge. This will be where the fingerboard starts at the front of the nut, also called the zero fret position. Measure from here to the 19th fret position. This defines the end of the tenon that will engage with the mortise in the heel block and supports the underside of the fingerboard. Cut off the excess length. Also mark on the neck surface the width of the fingerboard from the nut to the 19th fret position. Using a scale length/fret spacing chart from a set of plans measure from here to the 14th fret position. This is where the neck joins the body. Square a line around the neck.

Heel block

The offcut that was removed from the neck blank is cut into three shorter lengths of 60 mm. The combined depth of these blocks plus the neck blank thickness should be the same, or slightly more than, the body depth at the heel. The blocks are stacked on top of each other and glued to the underside of the neck blank at the 14th fret line. The end closest to the body extends 5 mm beyond the 14th fret line. This will allow a small amount of material that can be trimmed to a flush fit when the neck body join is finalised.

Roughing out heel

The neck area at the heel is roughly shaped to within a couple of mm of final shape. The final thickness of the neck plus fingerboard at the 12th fret is 22 mm. The fingerboard thickness will be 6 mm, so mark on the sides of the neck at the 12th fret 22 mm-6 mm =16 mm. Draw a curve from here up the sides of the heel block so that approximately 22 to 25 mm of heel remains towards the head side of the 14 fret line. Bandsaw the excess off. Also, bandsaw off the excess material outside the lines defining the width of the fingerboard. Leave about 1 mm surplus on each side. The heel is tapered in width from the neck to its far end by approximately 5-10 mm each side. This taper is marked and the sides of the heel planed to this line. The tenon joint is marked next to a width of 50 mm about the centreline and the extra width trimmed off. Mark a corresponding width and length on the body where the tenon will fit into the top of the heel block and use a razor saw and chisel to remove the waste from the mortise. Trim the mortise so that the tenon is a snug fit for width. It is important that the neck centreline is in perfect alignment with the body centreline. Do not make the mortise the full depth of the tenon yet; leave 5 mm as this will be adjusted when the tilt back of the neck angle has been worked out.

Neck angle

The neck is tilted back slightly to accommodate the curve in the soundboard and to give the correct working height of the strings over the frets and at the bridge. A check: when • the top surface of the neck is flush with the soundboard at the neck/ body join; and • a straight edge is placed along the top surface of the neck extending over the soundboard; • there should be 4 mm clearance between the bottom of the straight edge and the soundboard at the point where the saddle sits. We haven't trimmed the mortise/tenon joint flush yet because the base of the mortise will need to be trimmed to a corresponding angle. We need to take this into account by adding the height that the neck sticks out of the mortise at the neck body join e.g. if the neck sits 5 mm proud then the height above the soundboard at the saddle should be 9 mm, taking into account the 4 mm clearance. Place the neck in the mortise and adjust its tilt until the correct height is achieved. Take a bevel gauge and place the body of the bevel gauge on the neck top and the sliding bevel against the body at the same angle as the tapered side of the heel. Tighten the bevel gauge. Check on the other side of the heel that this angle matches—it should. Remove the neck and place it side-up in a vice. Then use the bevel gauge at the 14th fret mark and score the angle down both sides of the heel block with a marking knife. Use a fine saw to cut down to the edges of the tenon just on the body side of the scored line and remove the waste with a wide chisel. Pare back to the knife line with a sharp chisel, and remove the excess wood on the face of the heel that contacts the body to allow this surface to meet the guitar. It should now be a close fit to the body and give the correct neck angle. Now trim the base of the mortise in the body to lower the neck until it is flush with the soundboard. Double-check the neck angle height and centreline and the fit of the heel to the body. Using a spur point drill bit from the inside of the guitar, mark on the inside face of the heel the position of the heel block bolt holes. Drill and fit appropriate threaded inserts into the heel so that the neck can now be bolted on. Place the truss rod in the truss rod slot and ensure that the adjuster end of the truss rod fits under the soundboard without interference, if it doesn't fit, the truss rod slot may have to be made slightly deeper with a chisel. Once it fits well, fasten it into the truss rod slot as recommended by the supplier; some truss rods are epoxied in, others are fixed in with silicone sealant.

Head shaping

The head is thicknessed to suit the tuners being used. Generally this will fall in the range of 12-14 mm thick so that the threads on the tuner posts will engage from both sides. Remove material from the back of the head using a vertical fence set up on a bobbin sander. This also cleans up the back of the scarf joint on the neck. Make a template out of thin card for the head shape with its baseline at the back of the nut and mark on it the tuner positions. If the head shape is symmetrical it is a good idea to make a half-template which can be rotated about the centreline. Use the template on the back of the head to draw the shape, and bandsaw and plane/sand it to its final shape. Use a bradawl to mark the centres of the tuner holes, and use a brad point bit of appropriate size for the tuners being used (normally 10 mm). Use a drill press and support the other side of the head to avoid tearout when the bit breaks through.


The fingerboard is made from a hardwood such as Indian rosewood, ebony or maple. On a steel string guitar they normally have a slightly curved surface across the width—approximately 12 inch (304 mm) radius—and are tapered in length from the nut to the soundhole end. This can be altered to suit the players preferences but a good starting point is 44 mm wide at the nut and 58 mm wide at the 19th fret. It is important that the slots cut for the frets are done accurately using a narrowkerf fret slot saw. Pre-radiused and preslotted fingerboards can be bought from some of the luthiery supply companies. The fingerboard blank is thicknessed to 6 mm, with one reference side planed straight and one end squared off to this side. This will be the nut end and all measurements will be made from here. Now use a combination of plane and radiusing block with coarse sandpaper stuck to it with double-sided tape. Work along the length of the board until it is evenly radiused. The aim is to achieve a radius without creating any hollows along the length of the board. Draw a centreline and mark the width of the fingerboard about the centreline at each end. Use a ruler and a marking knife to define the edges of the fingerboard. While the fingerboard has a true, long edge parallel to the centreline and square to the zero-fret position, it is a good time to mark out where the fret slots are. Use double-sided tape to stick a steel ruler to the fingerboard so that one edge is on thecentreline and the zero end of the ruler is aligned exactly with the zero fret end of the fingerboard blank. For the measurement of fret slots from the zero position, a good online calculator can be found at http://www.stewmac. com/FretCalculator. Use the end of a cabinet scraper against the side of the ruler to align the ruler measurement and fret position. Make a small and precise mark on the fingerboard centreline for each fret; use a marking knife against the end of the cabinet scraper. Once all The Shed October/November 2013 43 frets are marked, remove the ruler and use a square against the planed side of the fingerboard to carry the marks all the way across the fingerboard with a marking knife. Use the fret slotting saw and jig to cut fret slots in these positions. Once this is done, plane away the excess fingerboard width to the lines marked earlier.

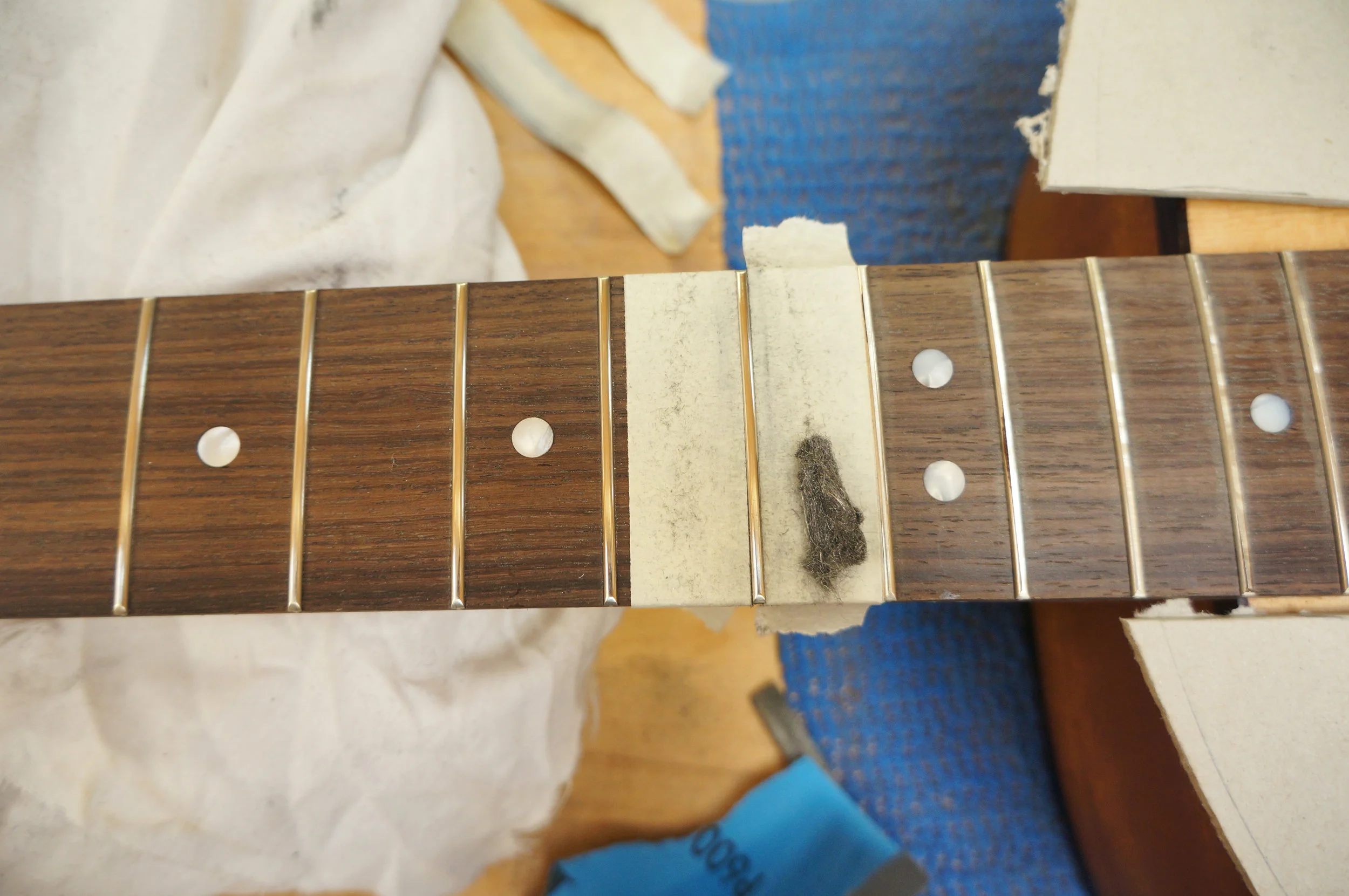

Position dots are inlaid into the fingerboard between the 2nd and 3rd, 4th/5th, 6th/7th, 8th/9th, 11th/12th, 14th/15th, 16th/17th and 18th/19th frets. It is usual to inlay a slightly different pattern in the 11th/12th fret position, often two dots rather than one. To accurately find the centre between the frets for the position dot, draw diagonals between the ends of the fret slots flanking where the dot is going to go, then use a bradawl to make a start guide for a brad point drill bit and drill to a suitable depth for the inlay being used (usually about 1.5 mm). The dot can be dry-fitted and then fixed in place by running superglue around the edge. When the glue is dry, sand the dots flush to the fingerboard surface. Smaller position dots are also used in the edge of the fingerboard facing the player, and these are inlaid in a similar way.


Fret wire has a tang underneath that, force-fitted into the fret slots, holds the fret in. The fret wire should be curved to a slightly tighter radius than the fingerboard it is going into. First, clear the fret slots of dust (we use a craft knife blade). Place the fingerboard on a solid heavy surface and align a piece of fretwire so that one end just sticks out over the edge of the fingerboard. Tap one end, then the other, into the fret slot using a nylon-faced hammer. Finish hammering the fret down into the slot after sniping the wire off the roll. Hammer in the middle last, otherwise the ends tend to pop up and are difficult to seat properly. Repeat until all frets are in, then use flush-cut nippers to trim off the excess length. File the fret ends flush with the fingerboard; they will be sanded with the sides of the fingerboard when the fingerboard is glued onto the neck.

Fingerboard glued on

Use a long, thick (20 mm-plus) clamping caul the same shape as the fingerboard, and that has been flattened along its length. This flat surface then needs to be made concave so it bears down on the frets in the radiused fingerboard with even pressure. Glue the fingerboard on. Use a 5 mm-wide spacer as a temporary nut to get the spacing correct. Once the glue has grabbed and the fingerboard is clamped on, remove this and clean glue squeeze-out from the nut slot. Leave space between the clamping caul and the temporary nut so that a small clamp can be used to glue this top part of the fingerboard down between the zero fret and the first fret. Ensure that the fingerboard is in the correct position relative to the lines marked earlier on the neck. Clean up glue squeeze-out around the neck tenon while it is wet.

Neck shaping

Necks can be shaped to suit the individual player. It can be helpful to have a favourite neck profile to copy from, but if not there are some general guidelines to arrive at a neck shape that feels comfortable to play. Neck thickness is measured from the top surface of the fingerboard, not including fret thickness. At the first fret, it is usually 20-21 mm, and at the 12th fret is 22-23 mm. Mark these thicknesses on the side of the neck blank and cut or chisel a notch out to this depth to give a reference. Then using rasps and /or spokeshaves, bring the neck down to an even taper between these two points. The neck profile is now rounded using spokeshaves, rasps, cabinet scraper and sandpaper until it is the correct profile all the way along. Check that any shaping that is done is even all the way along the neck i.e. no dips or bumps and that the profile and taper are blended nicely into the heel and the head. Finish off by fairing the edges of the neck back to the sides of the fingerboard and sand all over down to 400 grit.

Heel cap

Normally, a wooden cap is glued on to the end of the heel, and is usually the same timber as the back and sides. Bolt the neck on to the guitar body and decide on the height of the heel cap. It could be flush with the back or stepped down so that the heel finishes in line with the bottom of the binding and the cap is above that. Once you decide, mark the heel and trim it to height. Note that it is more visually pleasing to trim the heel so that the gluing surface for the cap is at the same angle as the back curve, rather than square. Place the neck back on the guitar and mark around the top of the heel on to the cap piece and trim the cap slightly oversize. It is important to make the cap join tightly to the body, so take time to shape this join accurately. Loosen off the neck bolts and slide a piece of plastic wrap between the heel and the body. This will prevent you from gluing the cap piece to the body. Apply glue to the cap piece and glue it onto the heel, making sure to push it tightly against the body to avoid any gaps. Once it is dry, trim back the cap and sand to fair it into the heel, then rebolt the neck to the body.


It is usual to make the bridge from the same timber as the fingerboard. Dimension a piece of hardwood to 150 mm long x 40 mm wide and thickness it to 9 mm. You need to rout a slot 3.2 mm wide in the bridge to accommodate the bone saddle. The slot—6 mm deep and 70 mm long— is centred on the bridge but angled slightly closer to the front edge of the bridge on the treble side (5 mm from slot edge to bridge front) than on the bass side (8 mm). The reason is to give extra scale length compensation for the thicker bass strings, otherwise they will tend to sound sharp when fretted higher up the fingerboard. Rout the slot using a straight-edge guide that also holds the bridge down while routing. The bridge is marked for drilling holes to hold the bridge pins. These are spaced equally and spacing is dependent on the neck width on the plans, as they will determine how far apart the strings sit from each other and the overall span of the strings. The centres of the bridge pin holes are 22 mm back from the front edge of the bridge. They are marked with a bradawl and drilled with a 4.5 mm brad point bit. These will be opened out later with a tapered reamer once the bridge is glued on to the guitar. The overall shape of the bridge is cut out with a bandsaw and shaped on a bobbin sander. The wings or outer ends of the bridge are tapered down to approximately 3 mm high. The flat underside of the bridge has to be shaped to the same dome as the soundboard. Either use a cabinet scraper or lay sandpaper face upwards on the sound board and move the bridge over it to sand off the high spots.

Gluing the bridge

There are several points to consider to ensure that the bridge is glued on to the soundboard in the correct place.

• The neck should be accurate to the centreline of the body. If not, this has to be adjusted otherwise the strings will run off the edge of the neck on one side.

• The bridge has to sit the right distance from the nut, determined by the scale length (distance between the nut and the saddle) used for the guitar. A small amount of extra distance (approximately 2 mm) is usually incorporated into this measurement to avoid the strings playing sharp when they are fretted.

• The bridge should sit square to the centreline of the body.

Once the correct bridge position has been found, use some low-tack masking tape to define where it should sit and drill (4.5 mm) through the two outer bridge pin holes all the way through the soundboard and bridge plate underneath. Two bolts through these holes will help to hold and clamp the bridge to the guitar while you are gluing. Use an additional clamping caul the length of the bridge and place packing pieces on each end to bear down on the ends of the bridge while maintaining sufficient height in the middle to clear the bolt heads when the bridge is clamped. The bridge is glued on using hot hide glue, chosen because of its good bond strength, lack of creep, excellent acoustic properties and reversibility. The area where the bridge is to go and the underside of the bridge are warmed under an infrared lamp. The hot hide glue is brushed generously onto both surfaces and the bridge is then bolted into position. A long soundhole clamp is used on the caul to bring pressure onto the wings of the guitar. Excess glue is cleaned up using a cloth dampened with hot water. Leave it for 24 hours to dry thoroughly The Shed October/November 2013 43 then remove the clamp and bolts and drill the rest of the bridge pin holes. The bridge pins are tapered and a reamer with a corresponding taper is used to open out the holes until the pins sit evenly.

String slots

The nut and the saddle are both made from bone. They are thicknessed to width then trimmed to length using a stationary belt sander. At this stage they will both be over-height. The nut is shaped to match the radius of the fingerboard but should be about 2.5 mm higher than the surface of the fingerboard at the zero fret. Cut into the surface of the nut to hold the strings are spaced so that the two outer strings sit inboard of the fingerboard edge by 3 mm. The others are then spaced to give equal distances between the strings. Note that because the strings get thicker from treble to bass. If they are spaced so that the centres are equidistant, the bass string spacing becomes closer than the trebles. The slots in the nut are started with a razor saw then opened up to the correct width with small files. The depth of each slot should allow the string to have 0.3-0.5 mm clearance over the first fret when the string is pressed down at the third fret. The saddle is also shaped so that the top surface corresponds to the radius of the fingerboard. More compensation is added to certain strings by filing ramps into the top surface of the saddle. The thinnest E string goes over the saddle towards the front edge, the next string (B) goes over the top of the saddle towards the back edge, then the next four strings go over the top edge progressively from the front to the back of the saddle. Fasten the tuners into the head of the guitar and string up the guitar. Check the string height at the twelfth fret by measuring from the top of the fret to the underside of the string. It should be 1.5 mm for the thinnest E and 2 mm for the bottom E. To achieve this, the saddle may have to be removed from the bridge and material removed from the bottom of it until the strings are the correct height. The guitar is now playable but the frets need dressing to ensure there are no high ones to cause buzzing. Use a steel ruler along the frets to determine which frets are high and mark them with a permanent marker. Use a diamond stone that you know is flat and grind down the high frets by running the diamond stone along the top of the frets. Maintain the radius of the fretboard. Once all the high spots have been ground down, mask off between the frets and use 600 grit wet and dry paper, followed by 1000 grit, then 000 steel wool to polish the grinding marks away. Oil the fingerboard with Lem oil or similar fingerboard conditioning oil.


There are some points to consider when finishing a guitar which should be treated differently from a piece of furniture. The finish on the soundboard should be thin and light in weight to avoid dampening down the responsiveness of the guitar while the finish on the neck should be hard-wearing and non-tacky to the touch. The many possible finishing options for a guitar are beyond the scope of this article. However, relatively simple finishes that can be applied by hand in the home workshop are French polish, Tru oil (gunstock oil) or brushed-on or wiped-on varnish finishes. Sprayed-on finishes such as nitrocellulose lacquer can also be used.
